MATERIAL LIFT
GOLIA EVO-3500TS

GOLIA EVO 3500 TS material lift. Aluminum frame, manual movement or using a drill-screwer. Max load 280 kg, Max height 3.5 mt. Can be configured to lift windshield or glass panels as option.

Price
5,300 EUR

taxes excluded, prices subject to change without notice. Last update: 2 days from now

280 kg / 617 lbs
max load
3.5 mt / 10.6 ft
max height
102 kg / 225 lbs
weight

buy now
download

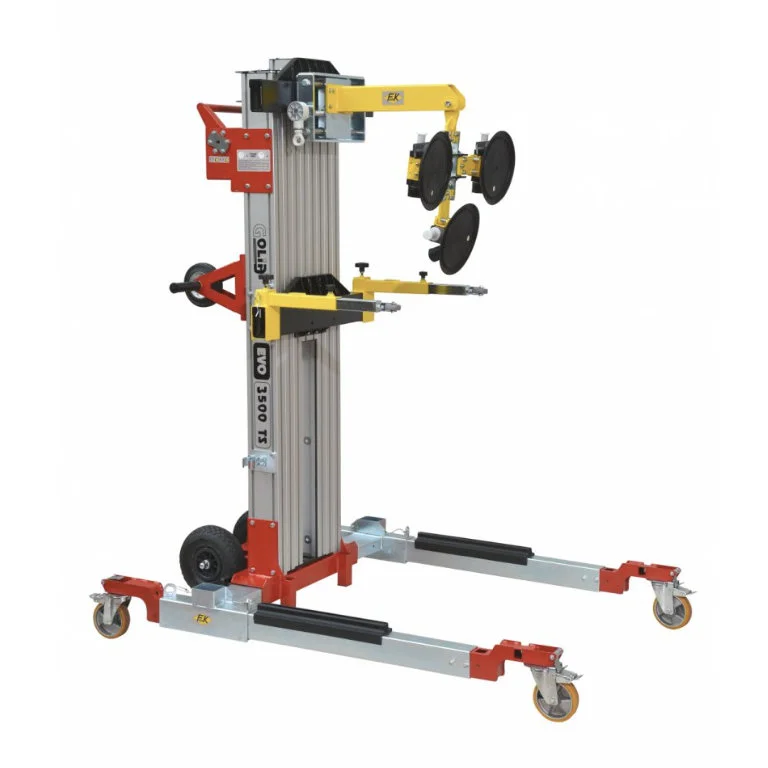

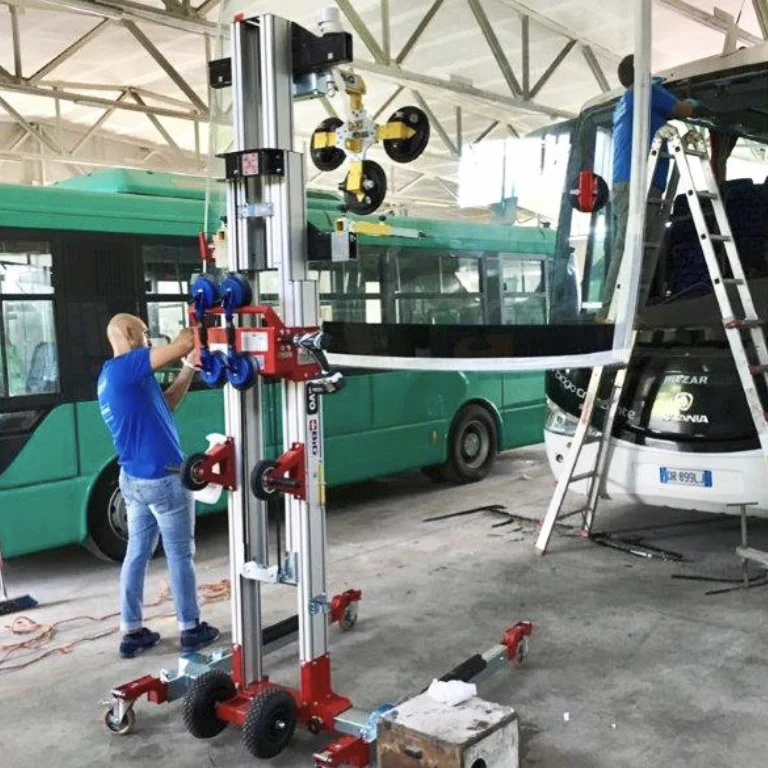

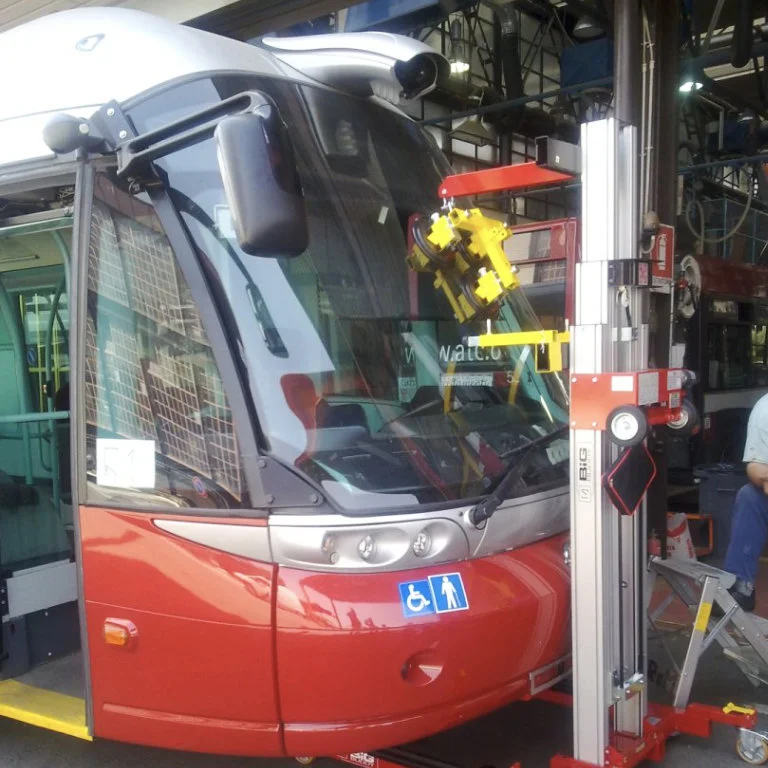

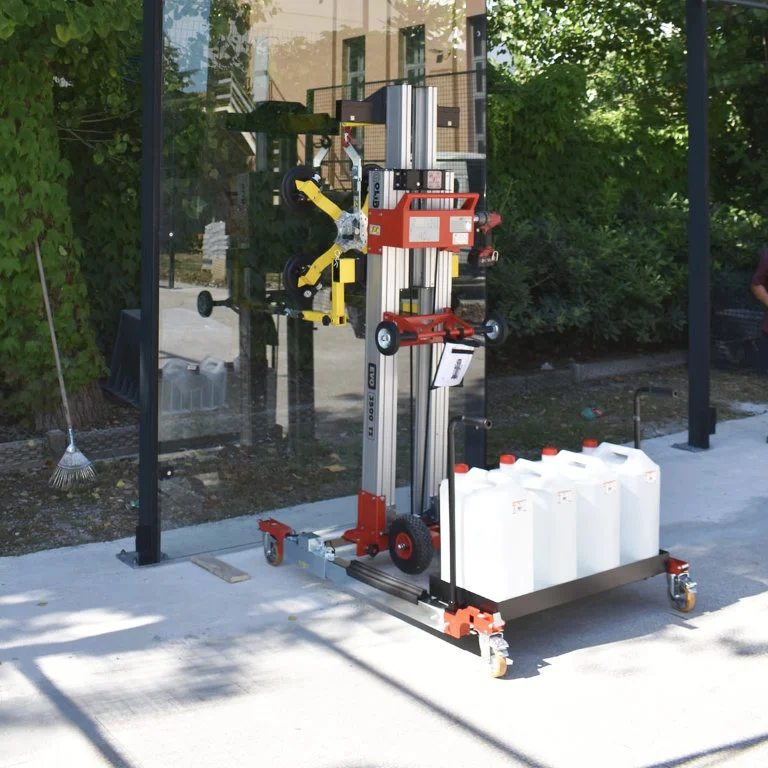

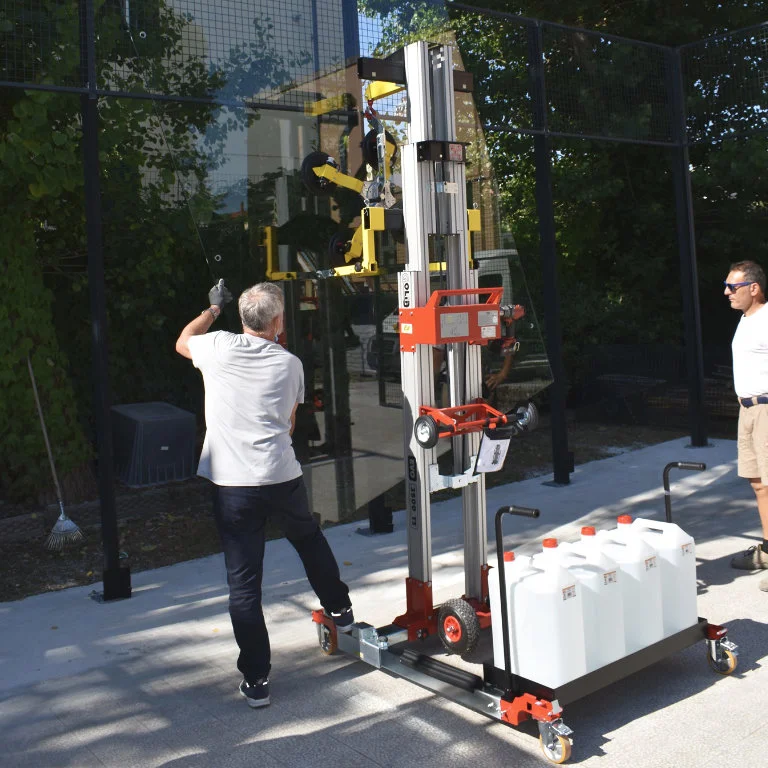

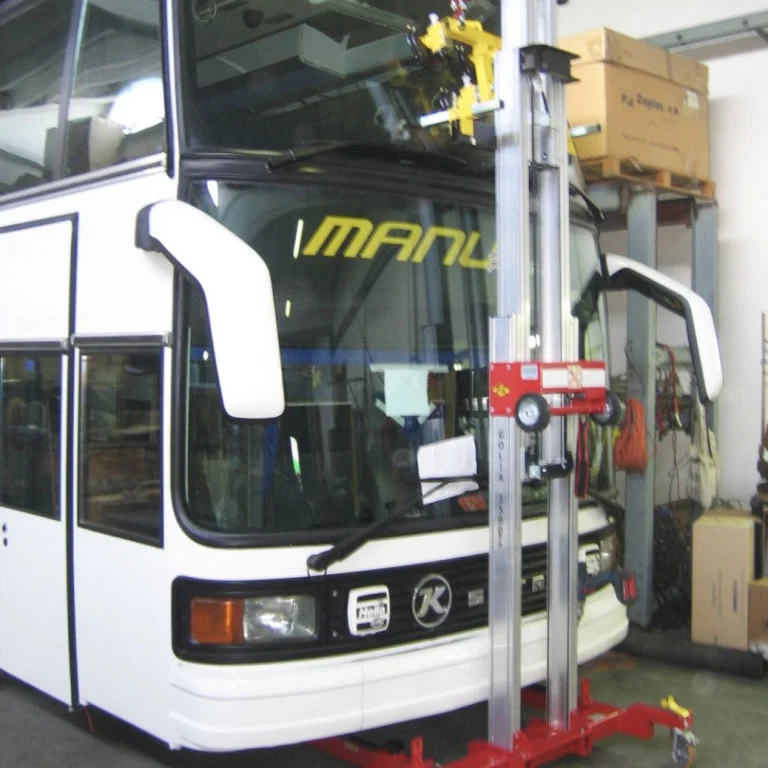

photos MATERIAL LIFT GOLIA EVO-3500TS

material-lift golia evo-3500ts photos
material-lift golia evo-3500ts photos
material-lift golia evo-3500ts photos
material-lift golia evo-3500ts photos
material-lift golia evo-3500ts photos
material-lift golia evo-3500ts photos
material-lift golia evo-3500ts photos
material-lift golia evo-3500ts photos
material-lift golia evo-3500ts photos
material-lift golia evo-3500ts photos

worldwide delivery
available

delivery time
30 days + shipping

payment terms
100% before shipping

wrong translation?

benefits MATERIAL LIFT GOLIA

  • Compact design, It can easily be disassembled and folded, so as to reduce its dimensions during transport or storage
  • Equipped with wheels and handlebars, to permit easy movements
  • Lifting can be done manually, through a patented system that uses a drill-screwer, or with an electric engine
  • Wide range of accessories that change functionality, easily interchangeable
  • Depending on the model, same machine can work as glass lifter, forklift, or to mount windshield
  • The stabilizers can works, without difference, in front or rear position (using counterweight)

how works MATERIAL LIFT

Thanks to the low weight and stabilization on wheels, replacing a windscreen is very simple and fast. If windows are to be installed, it is possible to invert the position of the stabilizers and use the counterweights.

Lift the windshield

Lift the windshield

Easly lift the glass, with drill-screw or using the hand crank. The movements are delicate, and the forks placed under the suction cups, equipped with wheels, hold the glass in place

Mount the windshield

Mount the windshield

Push the trolley close to the vehicle, and thanks to the mobile arm, positions the glass quickly and easily

main controls MATERIAL LIFT GOLIA EVO-3500TS

The patented lift system can be operated by a drill-screw (battery or electrical) or with a hand crank. The suction cups are equipped with manual pumps

golia-main-controls-general
  1. Operations with drill-screw
  2. Operations with hand crank

product reference MATERIAL LIFT GOLIA EVO-3500TS

  • category: MATERIAL LIFT
  • brand: GOLIA
  • model: EVO-3500TS
  • country of origin: ITALY
  • SKU code: GOLPREVO1002
  • HS/HTS code (Harmonized Tariff Schedule): HS3842839(*)
  • NCM code: (*)
  • availability: OnlineOnly
  • item condition: NewCondition

(*) HS/HTS/NCM codes may be incorrect, please request a verification before to place the order.

compliance to normative MATERIAL-LIFT GOLIA

Golia lifting trolleys are fully compliant with all the relevant norms for lifting equipments and are manufactured acm3ording to the indications provided by UNI EN ISO 9001. The design of Golia Lifters is always in compliance with the latest standards required in Europe

e.u. guarantee

E.U. legislation provides a Free of charge, 2 years guarantee for private person, and 1 year for company (legal guarantee) on faulty goods, for all products we sell, this is important because it is a guarantee that the goods sold by us are covered by European protection. All goods we sell are invoiced by Silcom North UAB, a company registered in Vilnius, Lithuania. Every product we send is checked before departure, but in case there are any problems, the customer is required to notify us as soon as possible, and must not use the product until our withdrawal. In case the customer needs a repair, we are always available to assist him, even after the warranty expires.

why choose us

Because for 50 years we have been dealing with industrial supplies, we have seen technology evolve and needs change. Because we are used to working with customers from all over the world, because we believe that after-sales service is as important as the technical preparation of our staff. We like to listen to requests, and propose the best solutions.

videos MATERIAL LIFT GOLIA EVO-3500TS

Video golia evo3500ts material lift for glass at work, mounting walls for paddle tennis


Video golia evo3500ts material lift for glass, 3d rendering, replacing bus windshield


Video golia evo3500ts material lift for glass at work, replacing bus windshield


Video golia evo3500ts material lift for glass at work, replacing bus windshield


features MATERIAL LIFT GOLIA EVO-3500TS

Demountable

Demountable

all golia trolleys are designed to be easily demountable, to permit simple transport and storage

forks for pallets

Forks for pallets

two forks for lifting pallets

loading wheels

Loading wheels

two wheels on the frame to semply loading/unloading of the lifter

lightweight

Lightweight

the aluminum frame allows to limit the weight

manual operation

Manual operation

height adjustment with manual crank

swivelling fork

Swivelling fork

swiveling system that allows to move the fork +/- 20 cm

demountable counterweight

Demountable counterweight

balcony configuration with a demountable counterweight (4 canisters 30 l with supports)

electric operation

Electric operation

height adjustment with screw-drill

trolley wheels

Trolley wheels

four heavy duty swivel wheels with brake


parts and options MATERIAL LIFT GOLIA EVO-3500TS
